Architectural Hinges
Architectural Hinges
Carlsen Precision Manufacturing offers a range of architectural hinge solutions for commercial, residential and institutional applications. We are the leader in the precision manufacturing of architectural hinge and offer a complete line of hardware and fasteners to support installation.
Our architectural hinge is an ideal solution as it supports the full height of the door, ensuring the door remains perfectly aligned, eliminating stress on door closers, automatic operators and locking hardware. Our brand of architectural hinge goes beyond the standard for the industry.

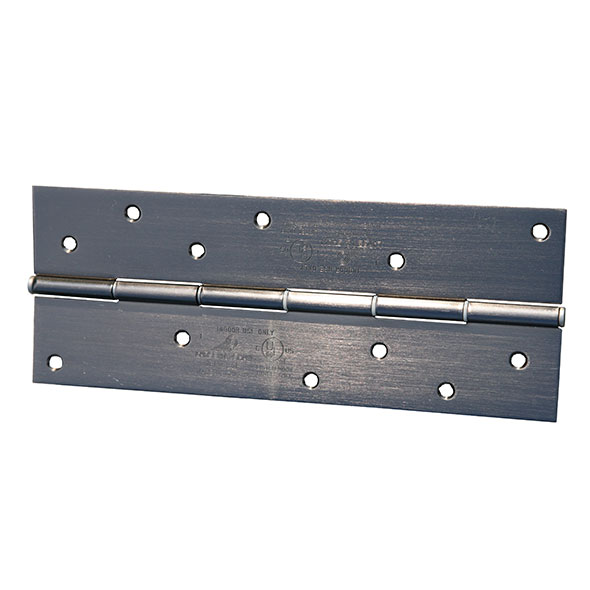

Edge Mount Hinges
This is a full-length entry door hinge. Leaves attach to the edge of door and frame, revealing only the slim hinge bevel when the door is closed. This is also known as a full mortise hinge.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS300 - 1414254XX | 0.075" | 79.16" | 4.50" | 0.187" |
| LS300 -1414251XX | 0.075" | 83.118" | 4.50" | 0.187" |
| LS300 - 1414295XX | 0.075" | 83.771" | 4.50" | 0.187" |
| LS300 - 1414323XX | 0.075" | 85.097" | 4.50" | 0.187" |
| LS300 - 1414252XX | 0.075" | 94.992" | 4.50" | 0.187" |
| LS300 - 1414253XX | 0.075" | 118.74" | 4.50" | 0.187" |

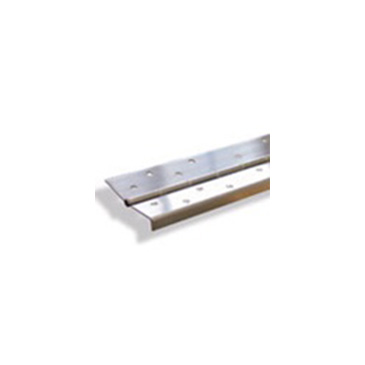

Single Edge Guard Hinges
This is a full-length entry door hinge. Includes a ¾" wrap around the leading edge of the door, protecting the inside edge of the door, which is most exposed to damage when open.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS315 - 1414263XX | 0.075" | 79.16" | 5.10" | 0.187" |
| LS315 - 1414256XX | 0.075" | 83.118" | 5.10" | 0.187" |
| LS315 - 1414296XX | 0.075" | 83.771" | 5.10" | 0.187" |
| LS315 - 1414324XX | 0.075" | 85.097" | 5.10" | 0.187" |
| LS315 - 1414262XX | 0.075" | 94.992" | 5.10" | 0.187" |
| LS315 - 1414264XX | 0.075" | 118.74" | 5.10" | 0.187" |

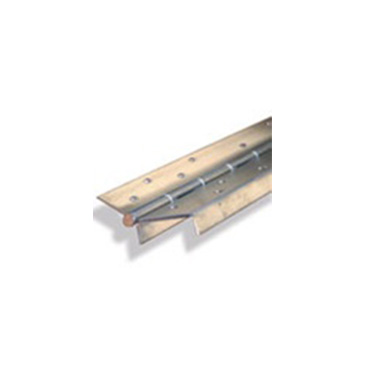

Double Edge Guards Hinges
This full wrap edge guard protects the inside and outside hinge edge and spans the length of the door.
| Product | Gauge | Length | Width |
|---|---|---|---|
| DG005 | 0.050" | 79.16" | Stainless Steel |
| DG006 | 0.050" | 83.118" | Stainless Steel |
| DG007 | 0.050" | 83.771" | Stainless Steel |
| DG010 | 0.050" | 85.097" | Stainless Steel |
| DG008 | 0.050" | 94.992" | Stainless Steel |
| DG009 | 0.050" | 118.74" | Stainless Steel |

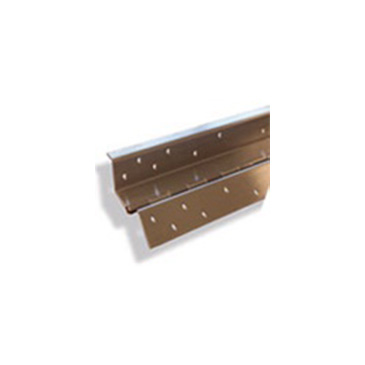

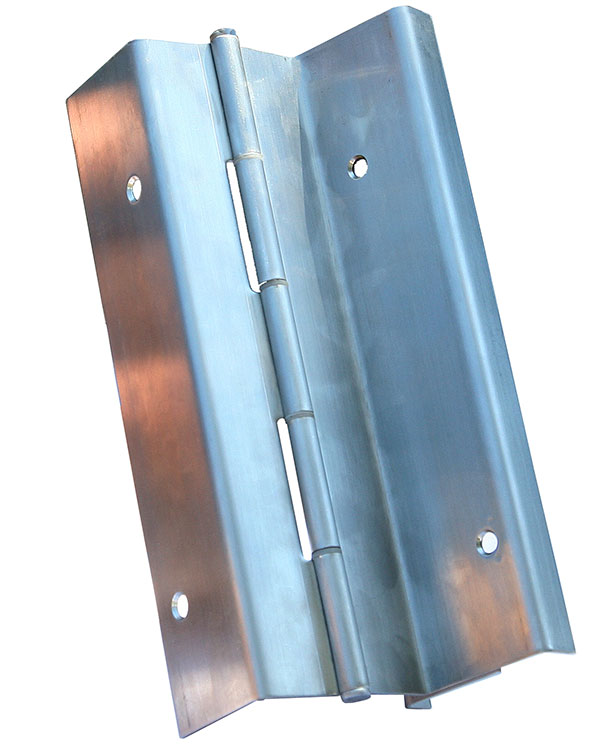

Swing Clear Single Guard Hinges
This is a full-length entry door hinge. Swing clear provides a barrier-free clearance in a 32” opening, the pivot point of the hinge is located on the face of the frame, allowing the door to swing out of the opening to provide clear passage through the door. The edge guard protects the inside edge of the door, which is most exposed to damage when open.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS311 - RD9997 | 0.075" | 79.16" | 5.777" | 0.187" |
| LS311 - 1414326XX | 0.075" | 83.118" | 5.777" | 0.187" |
| LS311 - 1414327XX | 0.075" | 83.771" | 5.777" | 0.187" |
| LS311 - 1414328XX | 0.075" | 85.097" | 5.777" | 0.187" |
| LS311 - 1414329XX | 0.075" | 94.992" | 5.777" | 0.187" |
| LS311 - 1414330XX | 0.075" | 118.74" | 5.777" | 0.187" |
Swing Clear Double Guard Architectural Hinges
This is a full length entry door hinge. Swing clear provides a barrier-free clearance in a 32” opening, the pivot point of the hinge is located on the face of the frame, allowing the door to swing out of the opening to provide clear passage through the door. The full wrap edge guard protects the inside and outside edge of the door, which is most exposed to damage when open. The edge guard adjusts to various door thicknesses.
| Product | Gauge | Length | Width | Pin Diameter |
|---|---|---|---|---|
| LS310 - RD9998 | 0.075" | 79.16" | 5.777" | 0.187" |
| LS310 - 1414341XX | 0.075" | 83.118" | 5.777" | 0.187" |
| LS310 - 1414344XX | 0.075" | 83.771" | 5.777" | 0.187" |
| LS310 - 1414345XX | 0.075" | 85.097" | 5.777" | 0.187" |
| LS310 - 1414346XX | 0.075" | 94.992" | 5.777" | 0.187" |
| LS310 - 1414347XX | 0.075" | 118.74" | 5.777" | 0.187" |
